Private Villa-RA

Jordan

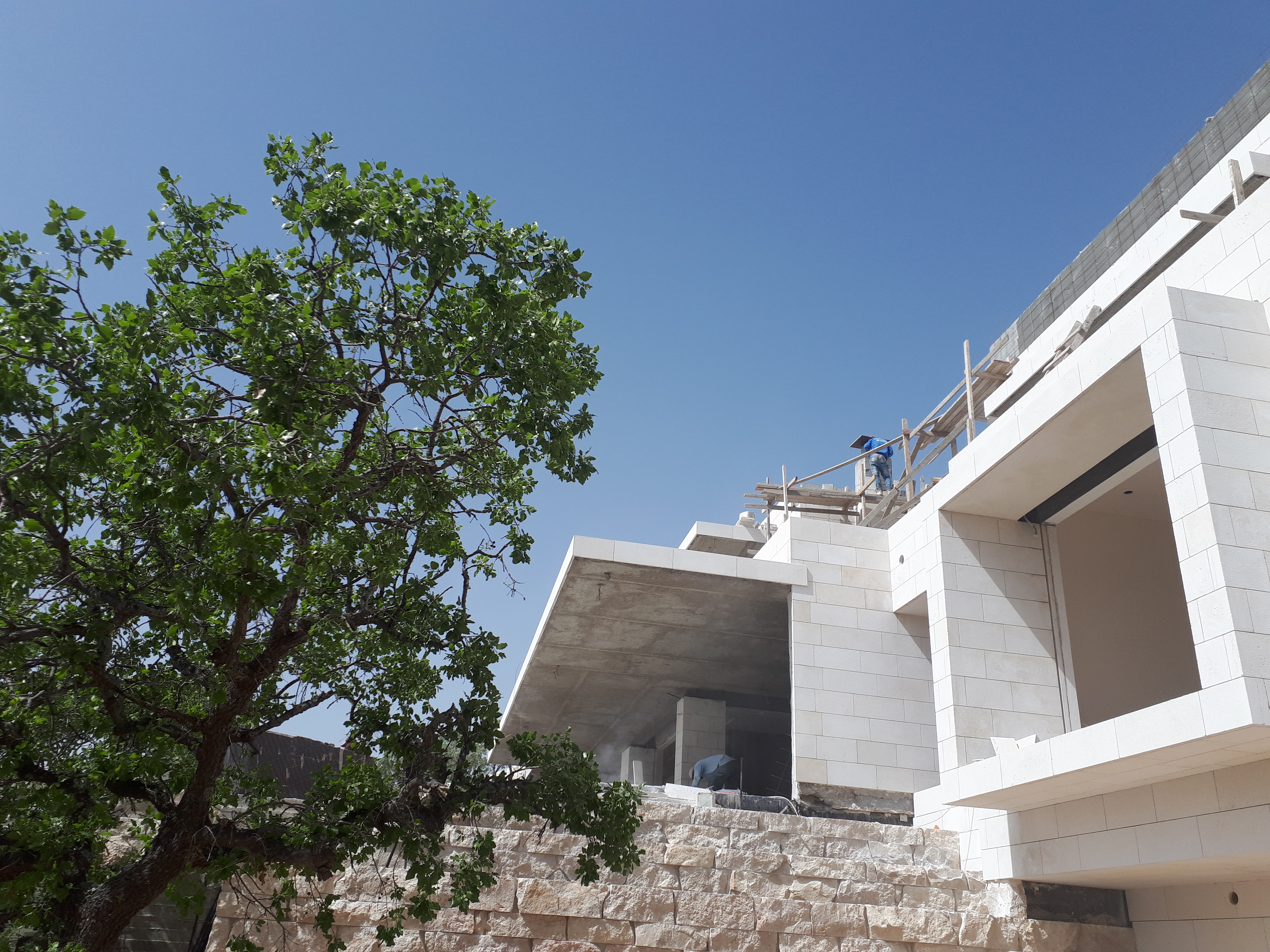

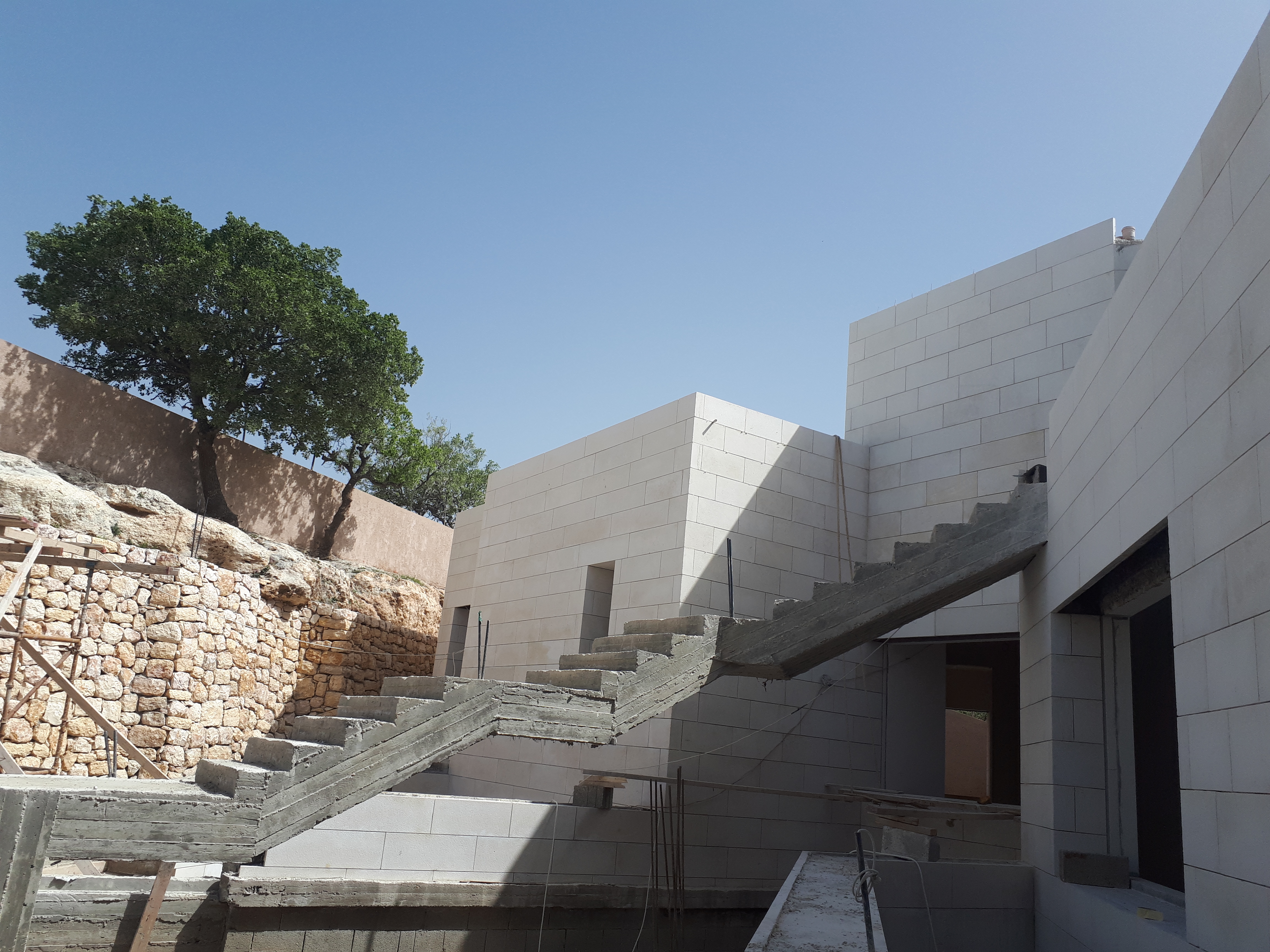

The primary structural challenges in this luxury villa are centered around the cantilever, which includes a canopy over a swimming pool spanning 4.7 meters, as well as an unsupported and spiral-shaped staircase that extends for 8 meters

type : Residential
area : 2000(m2)
status :Completed, 2018
services :Structural Design & Site construction supervision
