Private Villa-J

Jordan

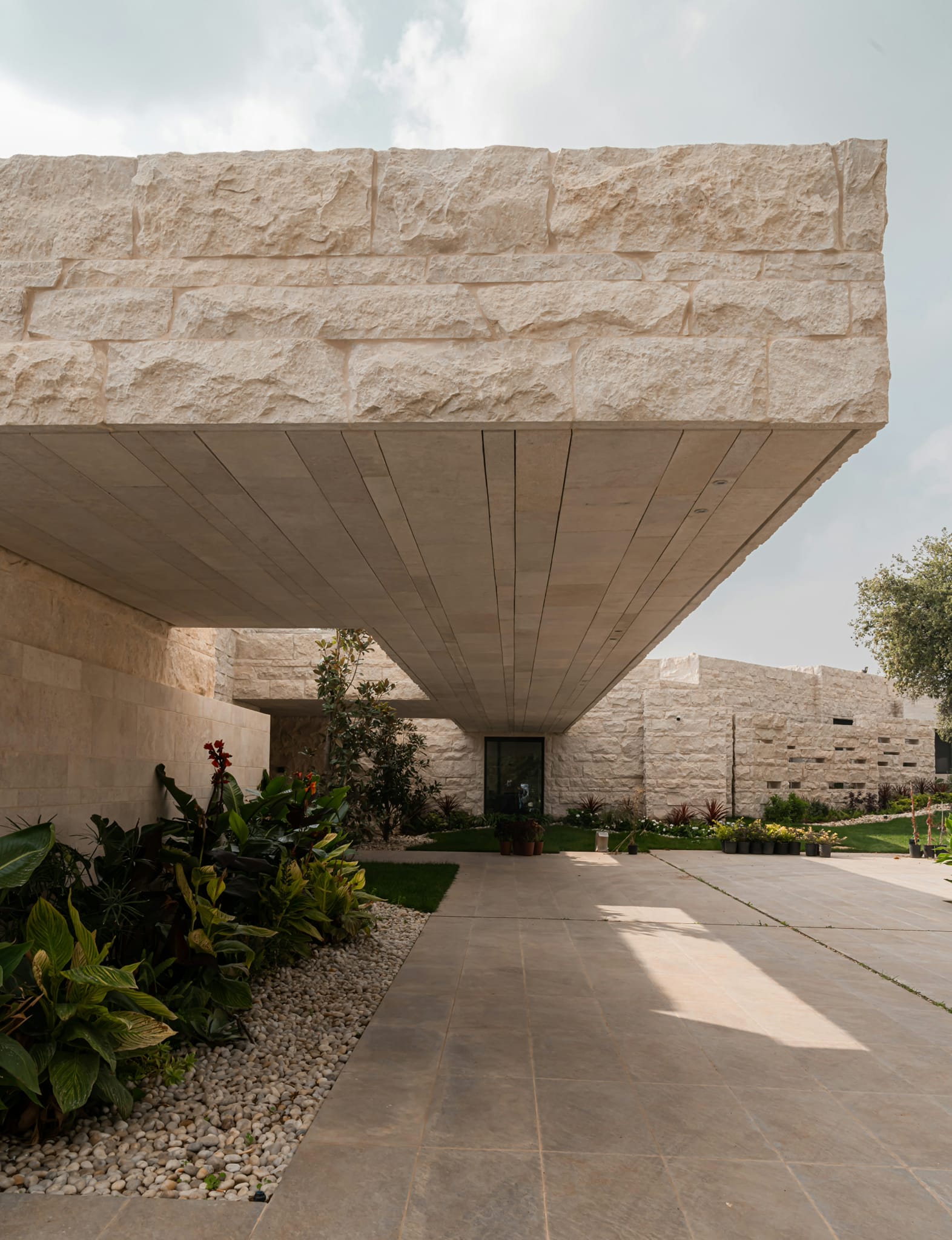

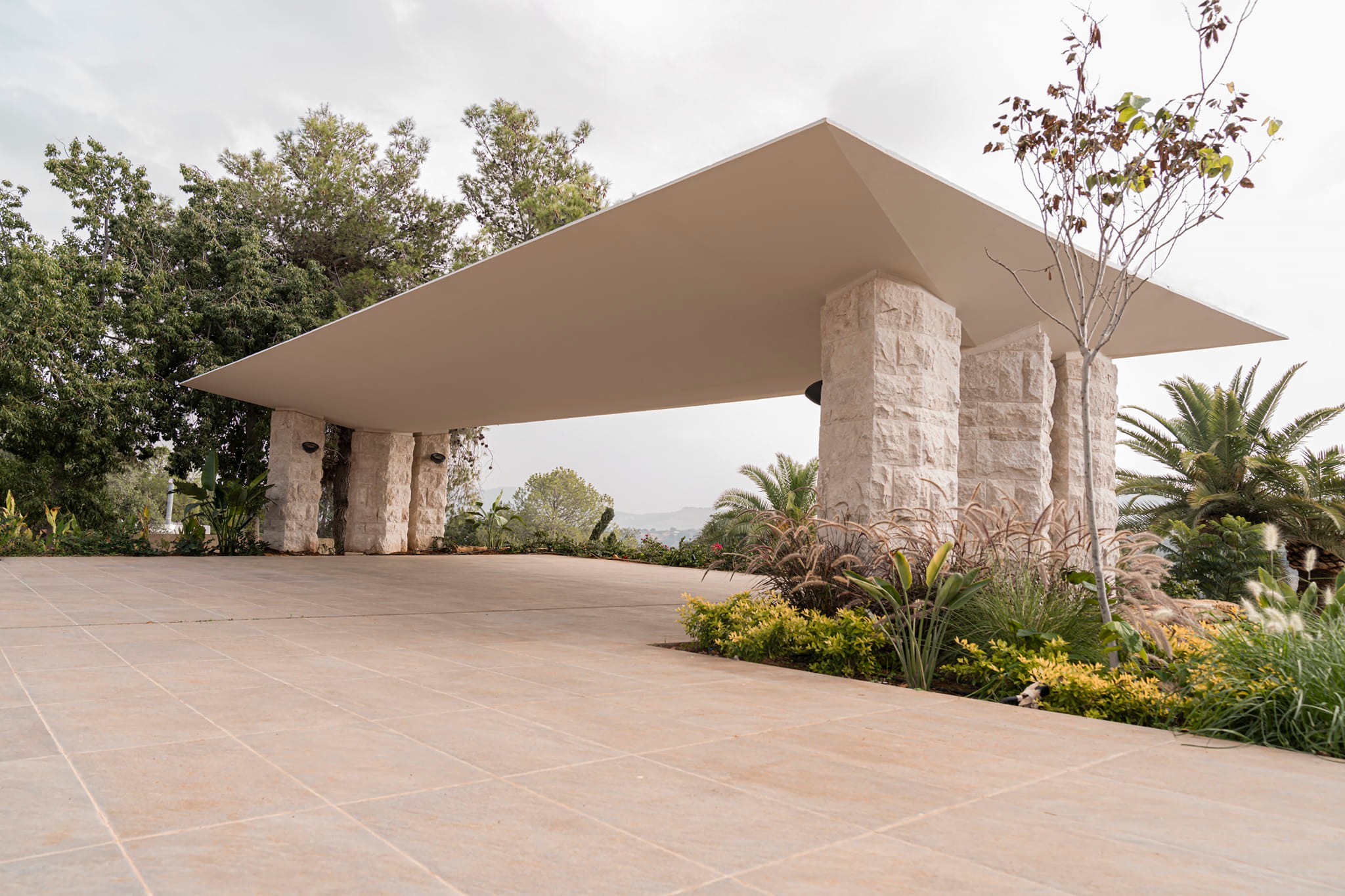

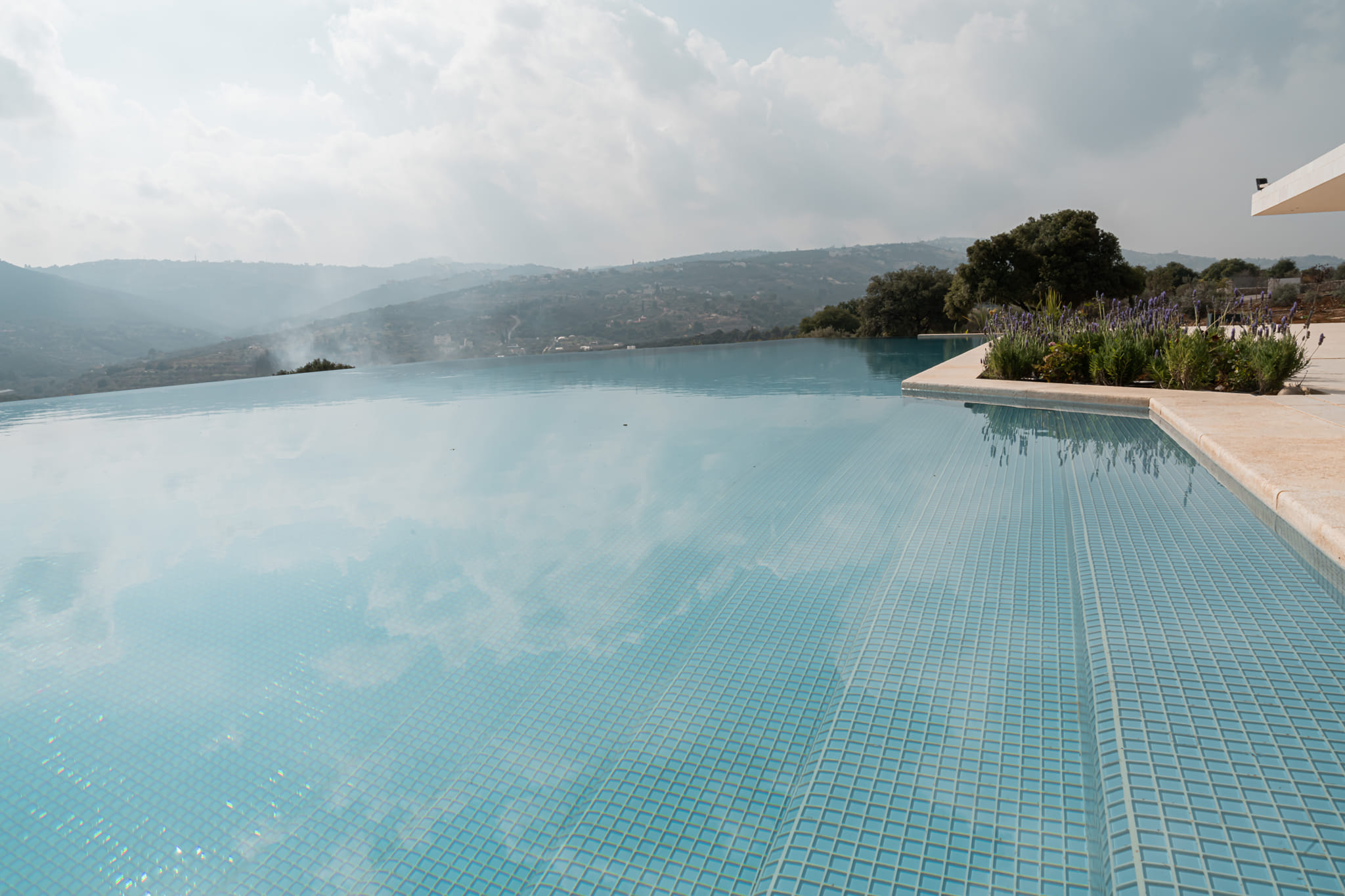

This project is distinguished by the presence of a basement slab containing a swimming pool, with a part of the pool extending about 1.5 meters above ground level. Additionally, there is a cantilevered concrete canopy spanning approximately 3.5 meters. Furthermore, there is an irregularly shaped slab that extends to nearly zero thickness on the sides. In addition, there is a free-standing staircase with a triangular cross-section at the bottom. The project also features a collection of cross vaults.

type : Residential
area : 3000(m2)
status :Completed, 2022
services :Structural Design & Site construction supervision
