Private Villa-AK

Jordan

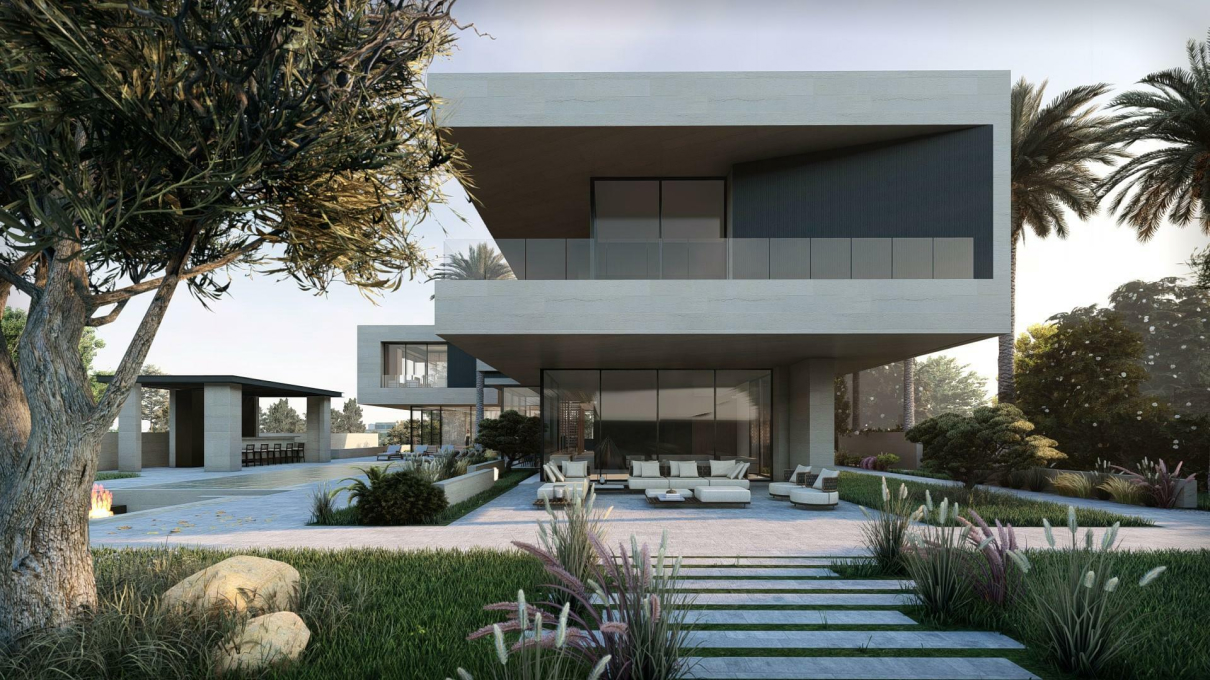

The structural design of this villa stands out with impressive spans of up to 10 meters between columns, complemented by cantilevered sections extending up to 3.5 meters. Furthermore, it features a 22-meter-long bridge on the terrace side and another remarkable 32-meter-long self-supporting bridge overhead.

type : Residential
area : 1600(m2)
status :Completed, 2022
services :Structural Design & Site construction supervision
