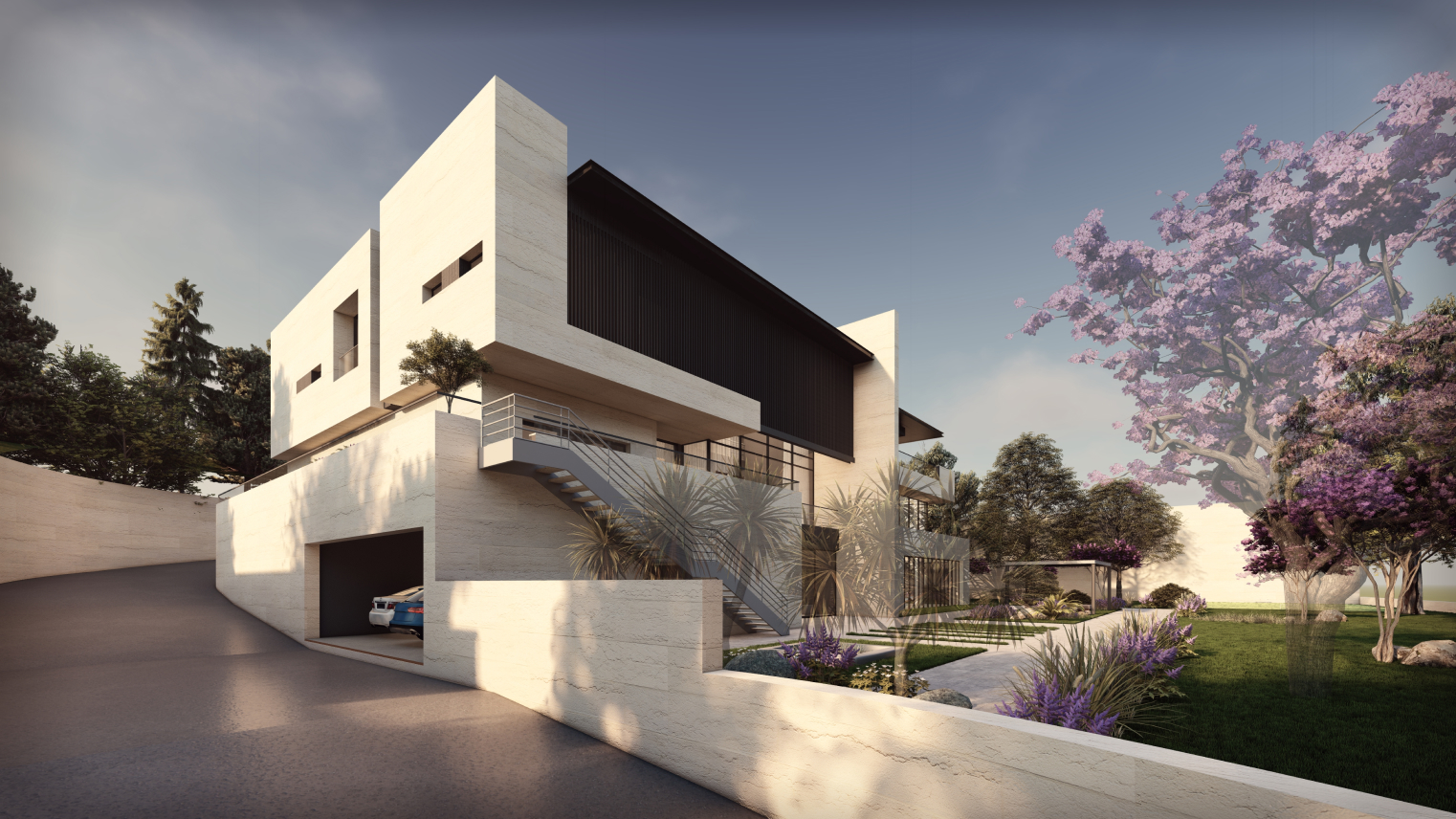

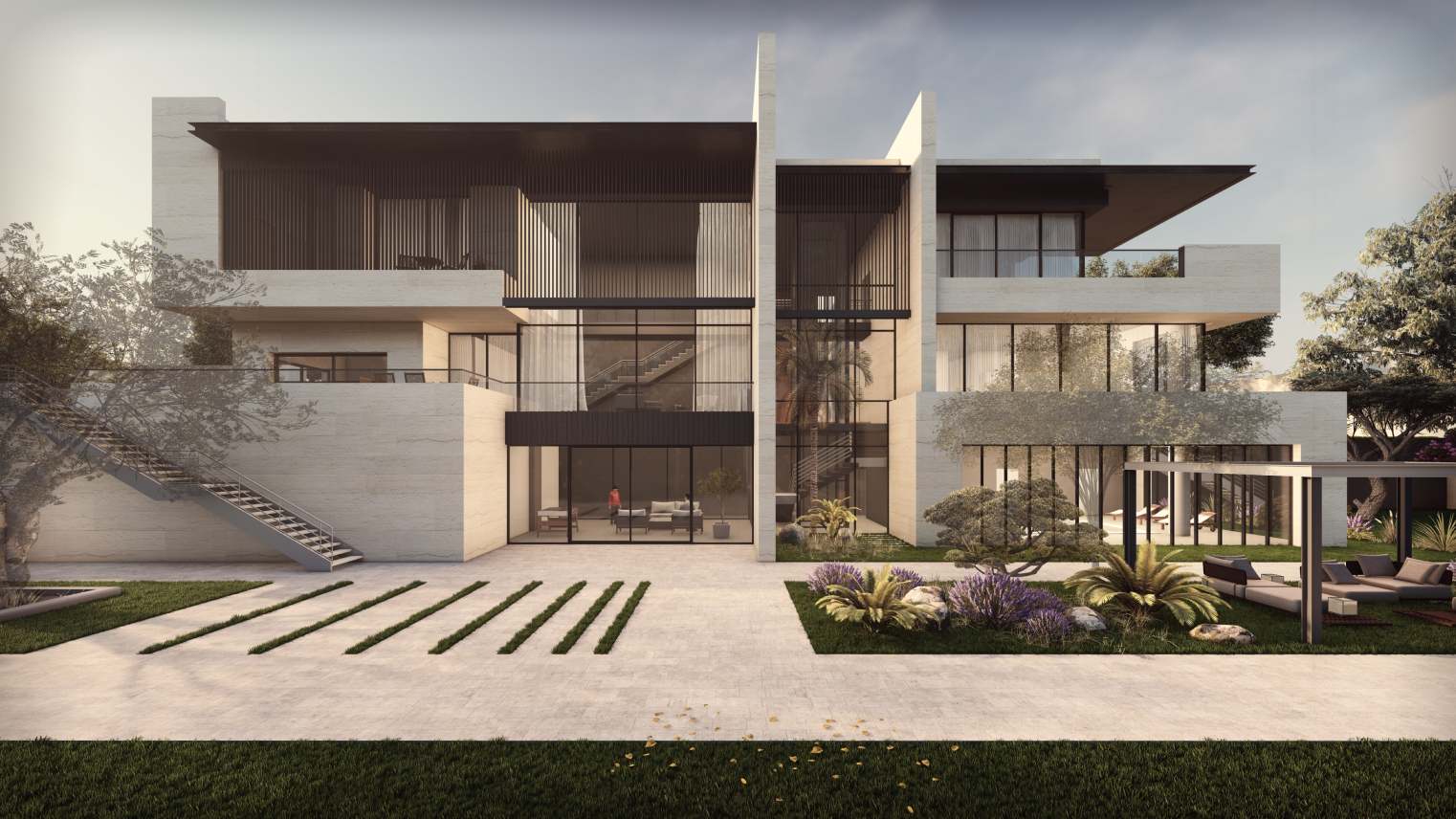

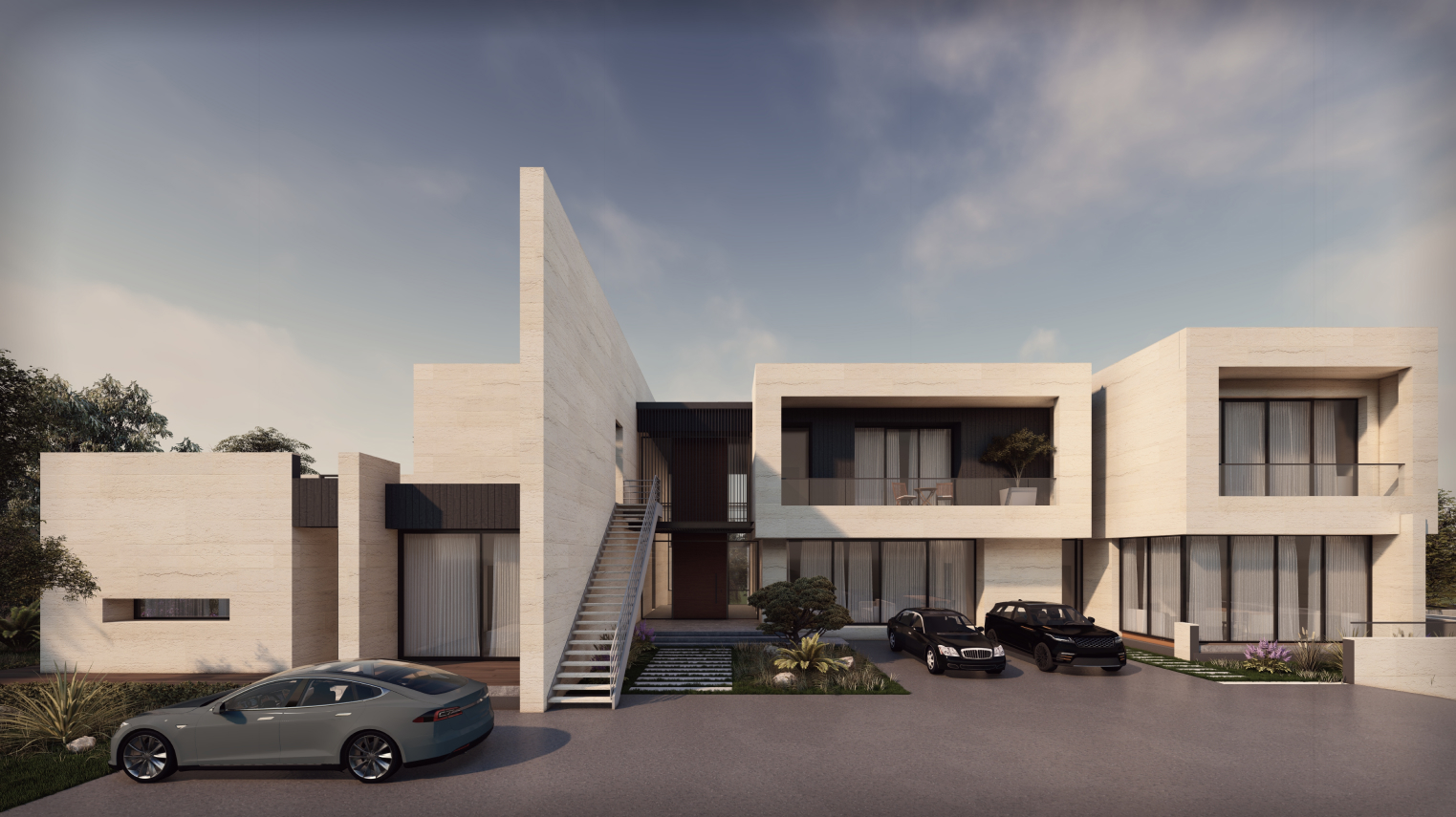

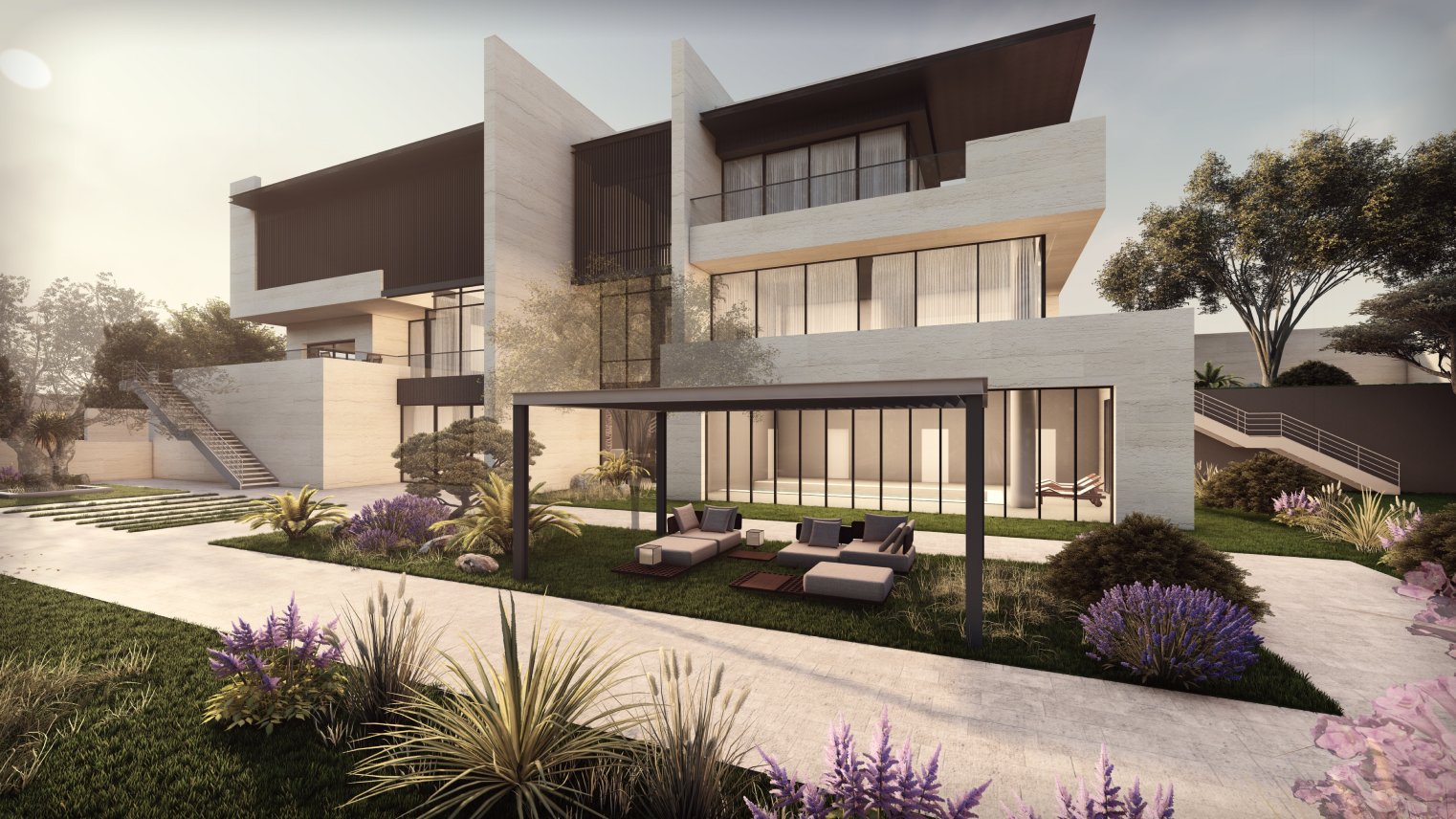

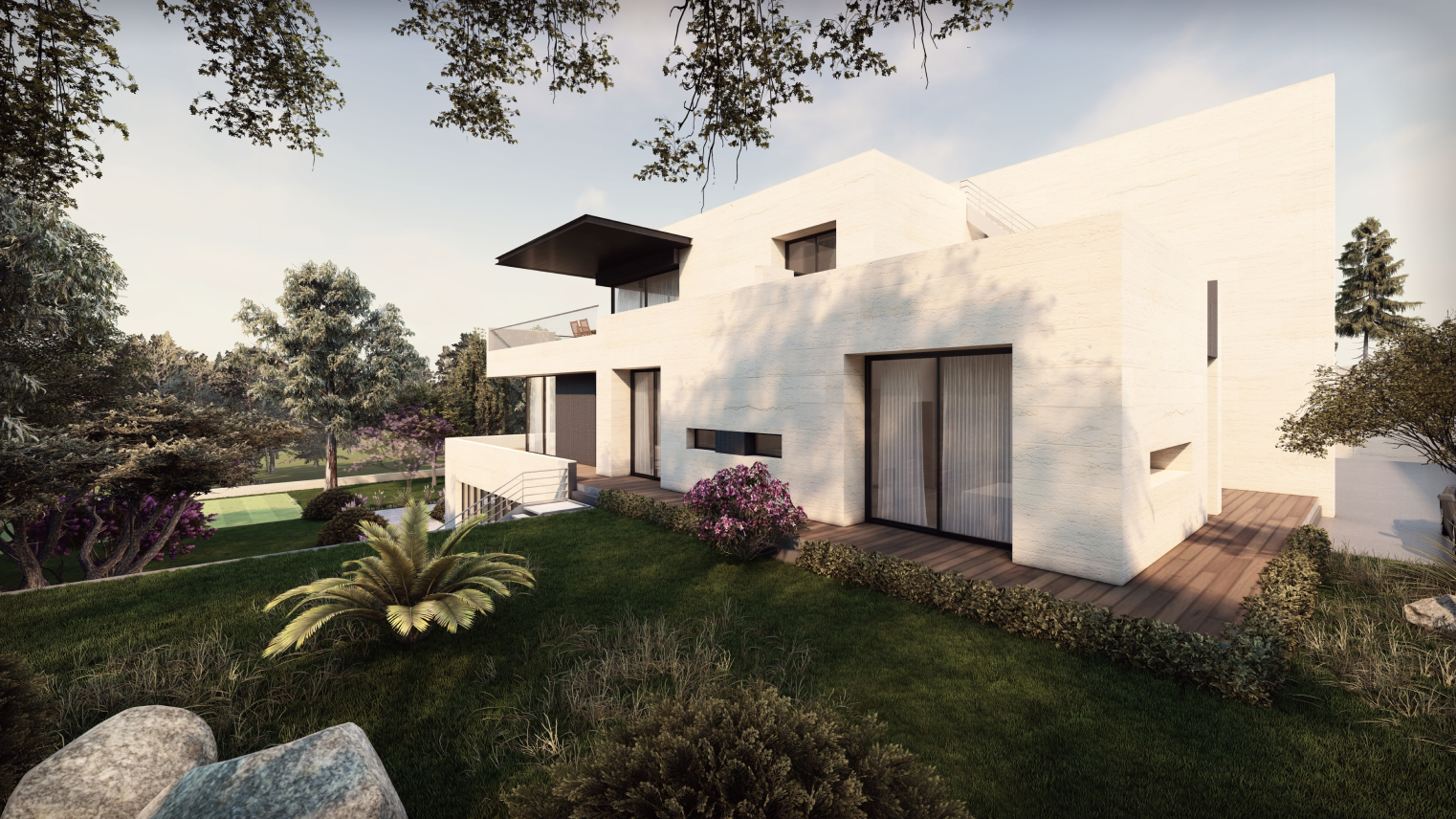

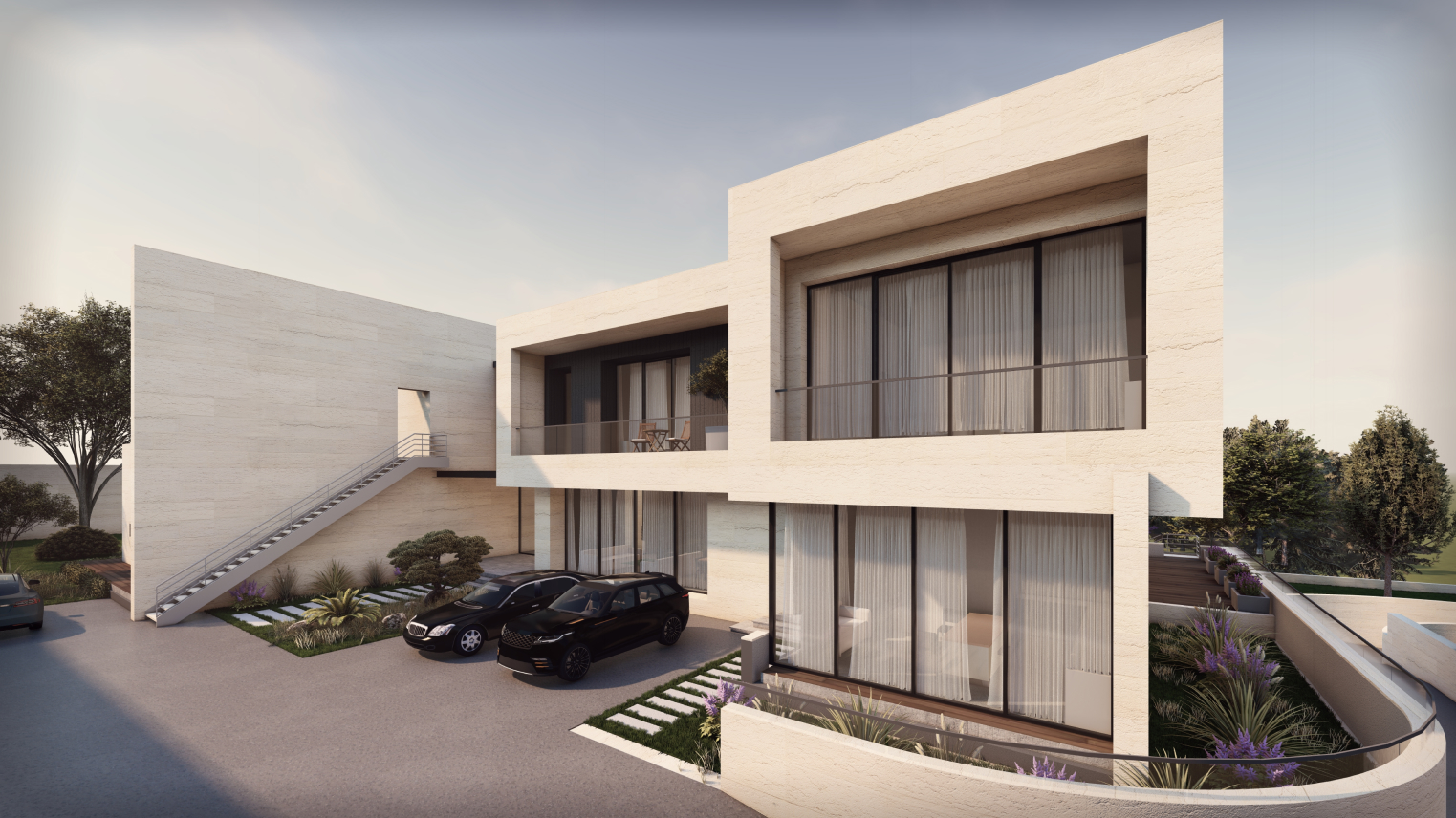

Private Villa-IY

Jordan

The structural design of this villa stands out for its high-span floor slabs, along with the presence of a transfer slab that spans distances of up to 6 by 12 meters. This transfer slab supports columns planted to accommodate three floors above. Additionally, there are cantilevers of up to 3 meters in length.

type : Residential
area : 1600(m2)
status :Under Construction
services :Structural Design & Site construction supervision
