Private Villa-AS

Jordan, Amman

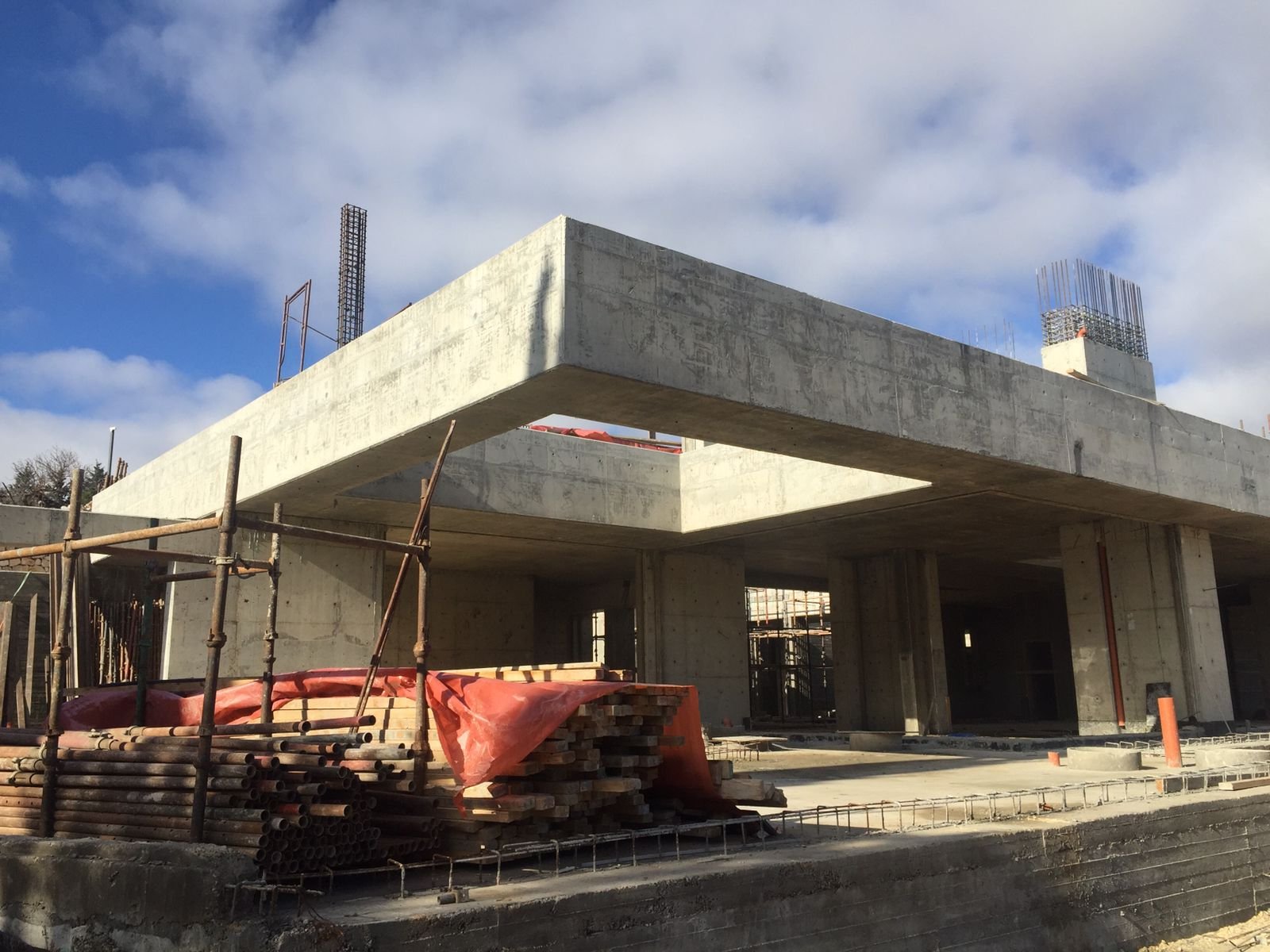

A magnificent private villa in Amman, boasting three spacious floors covering a whopping 2000 square meters. The main challenges we faced during its structural design were the impressive cantilevers, reaching an astonishing 8.0 meters in length, and the interior spans coming close to 10.0 meters. Additionally, numerous intricate architectural specifications demanded meticulous coordination across all disciplines.

type : Residential
area : 2200(m2)
status :Completed, 2022
services :Structural Design & Site construction supervision
