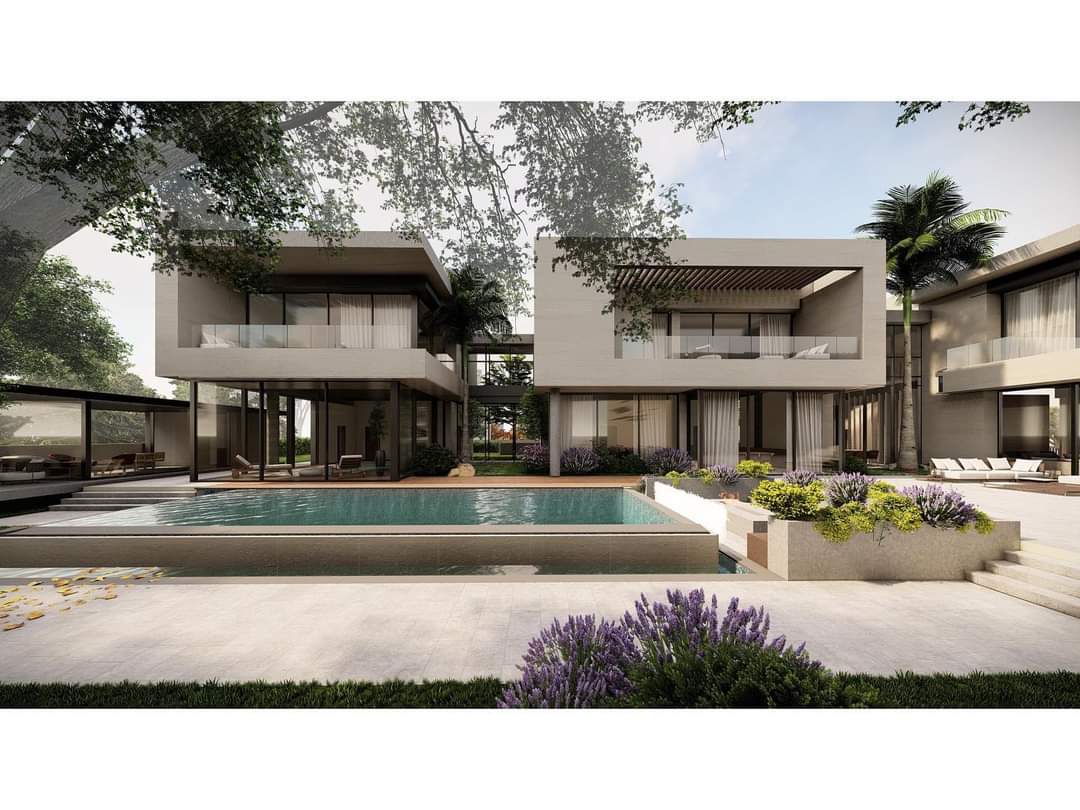

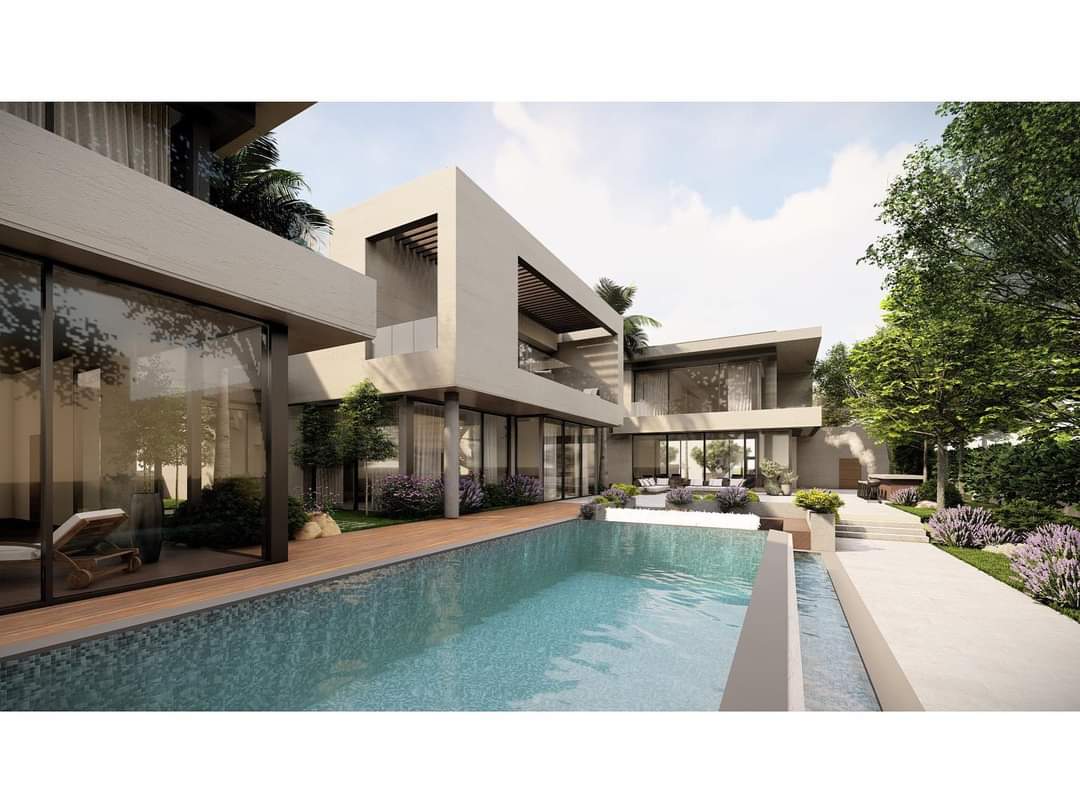

Private Villa-MG

Jordan

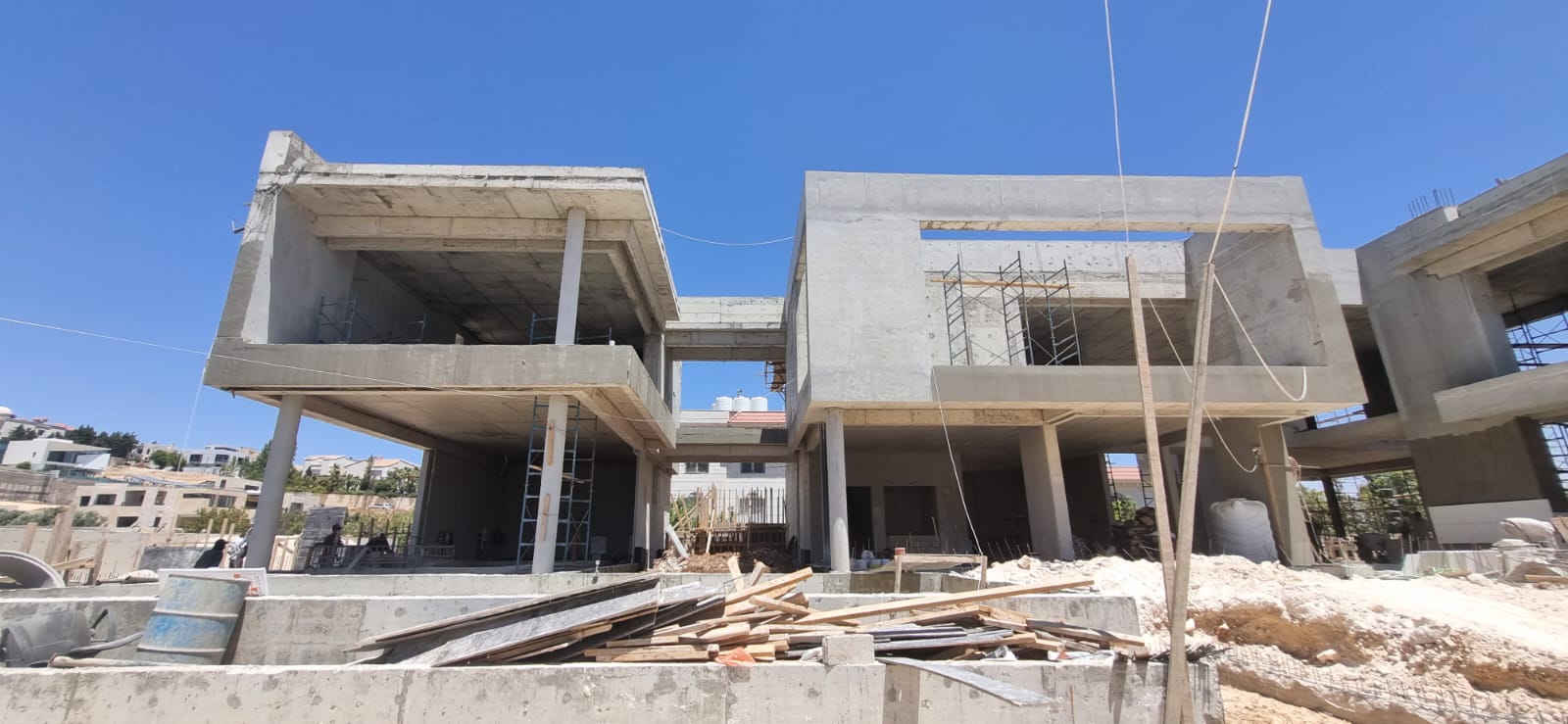

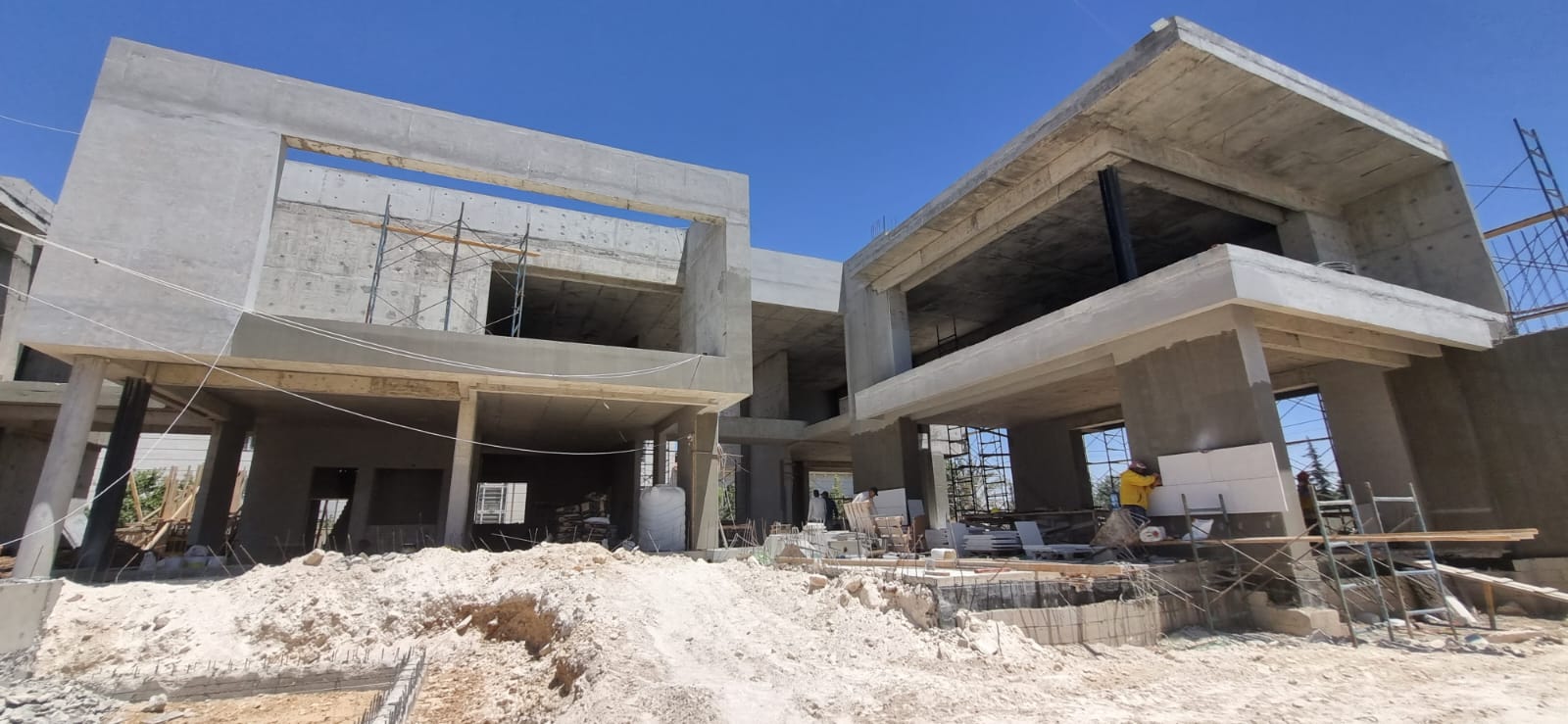

In this project, the exterior walls were constructed using load-bearing walls, resulting in the incorporation of a planted wall on each floor according to the architectural design. Additionally, there are cantilevers extending up to 3.5 meters, each adorned with walls. Moreover, there are internal spans reaching 8 meters, featuring an internal spiral staircase supported solely by the nodes.

type : Residential
area : 1100(m2)
status :Completed, 2023
services :Structural Design & Site construction supervision
